Interface

The basic operation is use tabs to set or change your settings, and press Record Now to record a video.

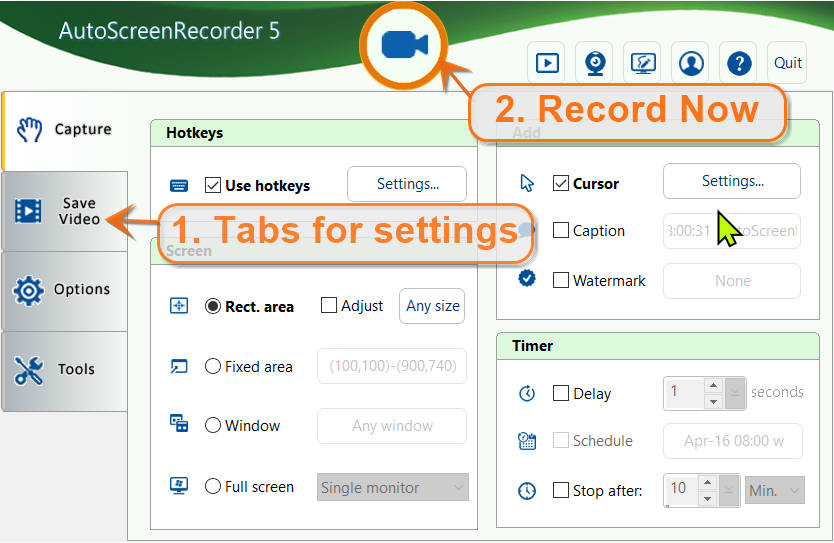

The main AutoScreenRecorder 5 window includes top buttons and tabs.

Top Buttons

These buttons are accessible from all tabs.

Record Now
Press this button to record a video using the current settings.


Open Video Player
Show Video Player where you can play recorded AVI files and other videos.

Toggle Webcam
Click to show and click again to hide the webcam.

ScreenDraw
Draw and write freely on screen during recording.

Profile Manager
Show the Profile Manager dialog. A profile saves all current settings that you can access later to create the same capture effect.

Help File
Get the online help file.

Exit AutoScreenRecorder 5

Tabs

AutoScreenRecorder has four tabs:

Capture – How you want to record a video.

Save Video – How you want to save the video.

Options – Customize your AutoScreenRecorder experience.

Tools – Other useful tools.

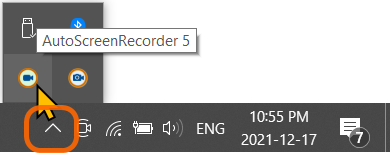

When running, the AutoScreenRecorder icon will appear in the system tray or notifications area.
